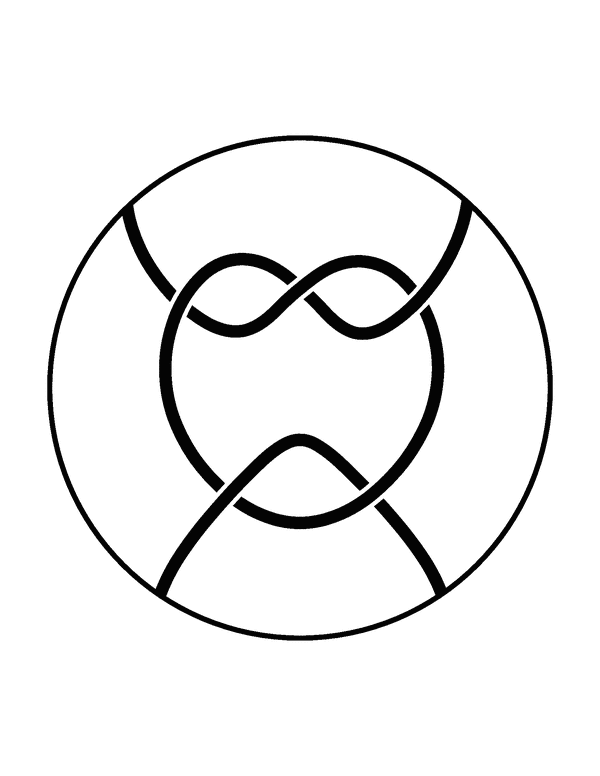

GIF preview of NonRatTangA.eps
Above is page preview only. Download the PDF or EPS version for high quality printing.

Following is a detailed description on how the KnotPlot script was used to generate the files on this page. Example shown is for letter size paper. See the note (right) about printing to A4 paper. If you're only generating an EPS file for inclusion in another document, then you don't need to worry about setting the pagesize.

Run KnotPlot in non-graphics mode to generate the EPS file.

knotplot -nog < NonRatTangA.kps

One could instead run KnotPlot in graphics mode and enter the following command into the KnotPlot Command Window

<NonRatTangA.kps

We now have the file NonRatTangA.eps which could be printed directly on a PostScript printer. For printing to a non-PostScript printer, generate a PDF file NonRatTangA.pdf from the EPS file NonRatTangA.eps using Ghostscript.

# Note: enter the following three lines on one command line
gs -dCompatibilityLevel=1.3 -q -dNOPAUSE -dBATCH
   -sPAPERSIZE=letter -sDEVICE=pdfwrite
   -sOutputFile=NonRatTangA.pdf -c .setpdfwrite -f NonRatTangA.eps

The remainder of this example shows how the preview image seen above was created. This is useful for including an image on a web page or in a presentation. Printing the EPS or PDF file will give much higher quality than printing the preview image. These files, NonRatTangA.eps and NonRatTangA.pdf, as well as their counterparts for A4 paper, NonRatTangA_a4.eps and NonRatTangA_a4.pdf, can be downloaded using the links in the right hand panel on this page.

# run Ghostscript to generate a temporary PPM file
# Note: enter the following two lines on one command line
gs -q -dNOPAUSE -dBATCH -sPAPERSIZE=letter -sDEVICE=ppmraw
   -sOutputFile=NonRatTangA.ppm -r200 -f NonRatTangA.eps

# scale it down using ImageMagick convert command
convert -resize 600x NonRatTangA.ppm NonRatTangAS.ppm

# reduce the number of distinct colours and create the gif
convert -colors 32 NonRatTangAS.ppm NonRatTangA.gif

# delete temporary files
/bin/rm NonRatTangA.ppm NonRatTangAS.ppm
Page created at Sat 15 Mar 2014 18:24:22 UTC
Copyright © 2014 by Robert G. Scharein
css  xhtml

KnotPlot script that generated the Encapsulated PostScript (EPS) file:

% KnotPlot script: NonRatTangA.kps
% Sat 15 Mar 2014 18:24:22 UTC

% making a non-rational tangle with the Tangle Calculator
% to read about tangles, go to
en.wikipedia.org/wiki/Tangle_(mathematics)
% or for rational tangles
en.wikipedia.org/wiki/Tangle_(mathematics)#Rational_and_algebraic_tangles

scale=.15
ortho
cyl-rad= 1.0


dstep=44

load numer.k
tholder install t
tangle 2@3@#@t
mass open
ago 200
scale 1.6


pserase=1.7

psoption clip circ 0 10.5
psoption frame circ 0 10.5
psoption frame linewidth .4
psoption phantom -11 -11 11 11

psout NonRatTangA

% End of KnotPlot script

This script generates a EPS file (download below) suitable for printing on letter size paper. For printing on A4 size paper, use the command psop pagesize a4 prior to the psout command.

Download a high quality PDF or EPS file (for either letter or A4 size paper):

The PDF files and the preview image seen on this page were generated from the EPS files using Ghostscript (details in left panel on this page).
